Chain Of Responsibility Pattern

Reference
https://refactoring.guru/design-patterns/chain-of-responsibility

What is Chain of Responsibility?

  • Behavioral object pattern
    • A pattern about how groups communicate.
  • A pattern that passes requests along a chain of handlers.
    • Each handler in the chain decides whether to process the request or pass it to the next handler.

Situation

  • Online Ordering System

Requirements

  • Only authorized users can create orders (restrict system access).
  • Only admin users can view all information about all orders.

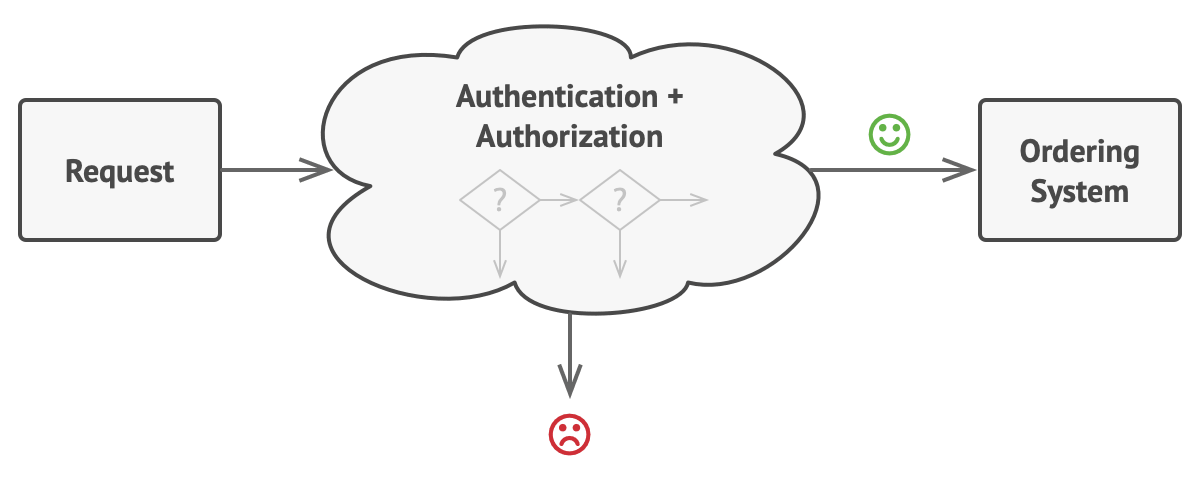

Approach

  • These checks must be performed sequentially:
    1. Check credentials (authentication)
      • If credentials are wrong or authentication fails, the process stops.
    2. Grant appropriate permissions (authorization)

Problem - Adding More Requirements

  • Over time, new requirements are added:
    • Add validation to avoid sending raw order data for security reasons.
    • Check for brute force password cracking by monitoring repeated failed attempts from the same IP.
    • Add caching for performance.
  • If all this logic is implemented in a single object, the code grows, becomes harder to maintain, and is not reusable.

Solution - Create a Chain of Handlers!

Handler

  • The chain of handlers passes specific behaviors to handler objects.
  • Each check can be a class with a single method.
  • Request data is passed as arguments to these methods.

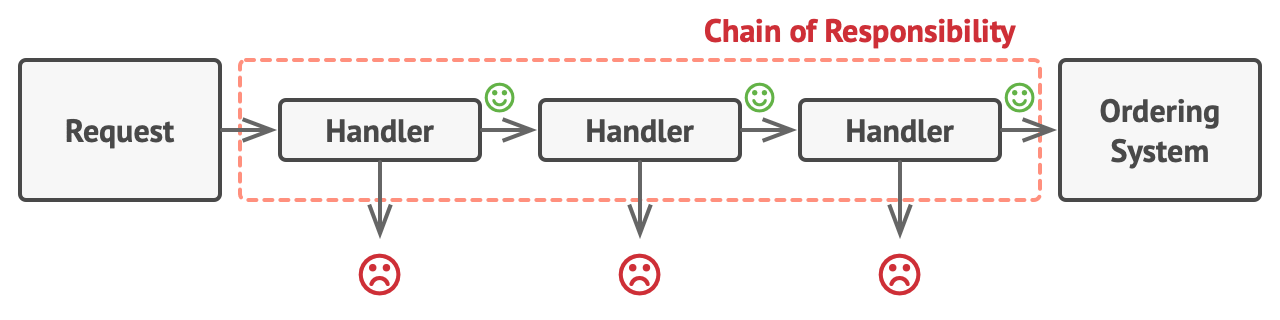

Applying as a Chain

  • Handlers are linked in a chain, each with a reference to the next handler.
  • Each handler can process the request or pass it to the next handler.
  • The request traverses the chain until all handlers have processed it or one stops the process.

Point

  • A handler can decide to stop processing at any point.

Application

  • In the ordering system, validation, authentication, etc. can each be a handler with a single method.
  • If a handler’s check passes, the request is passed to the next handler.
  • Thus, a series of handlers forms a chain of responsibility.

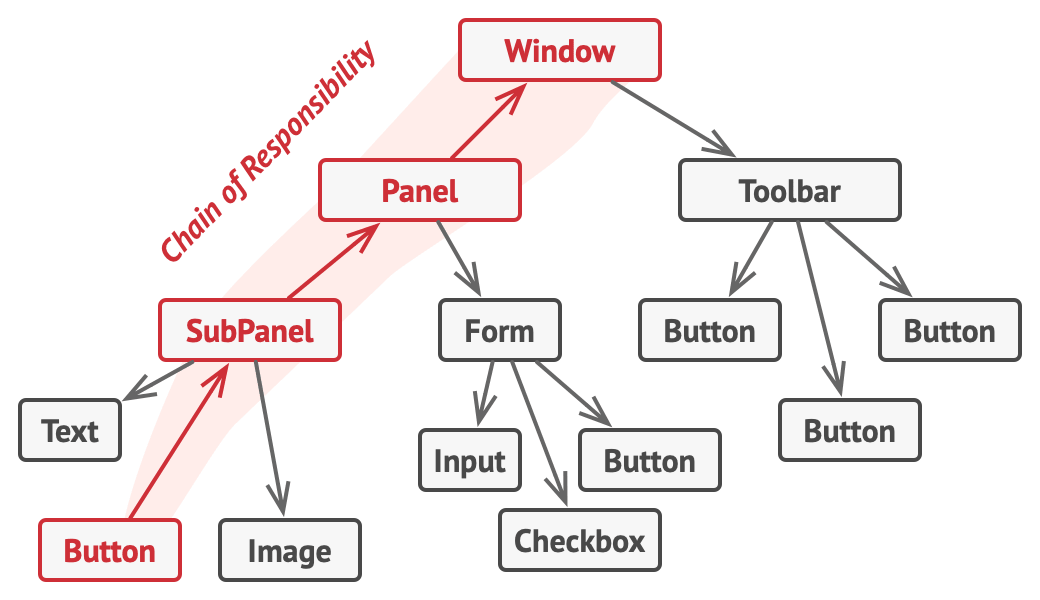

Another Approach - Only One Handler Processes the Request

  • In some cases, only one handler in the chain processes the request (or none).
  • If a handler can process the request, it does so and stops; otherwise, it passes the request to the next handler.
  • This is common in GUI systems.

Note

  • All handlers must implement the same interface.
  • If handlers depend on concrete handlers, you lose flexibility in ordering and reuse.

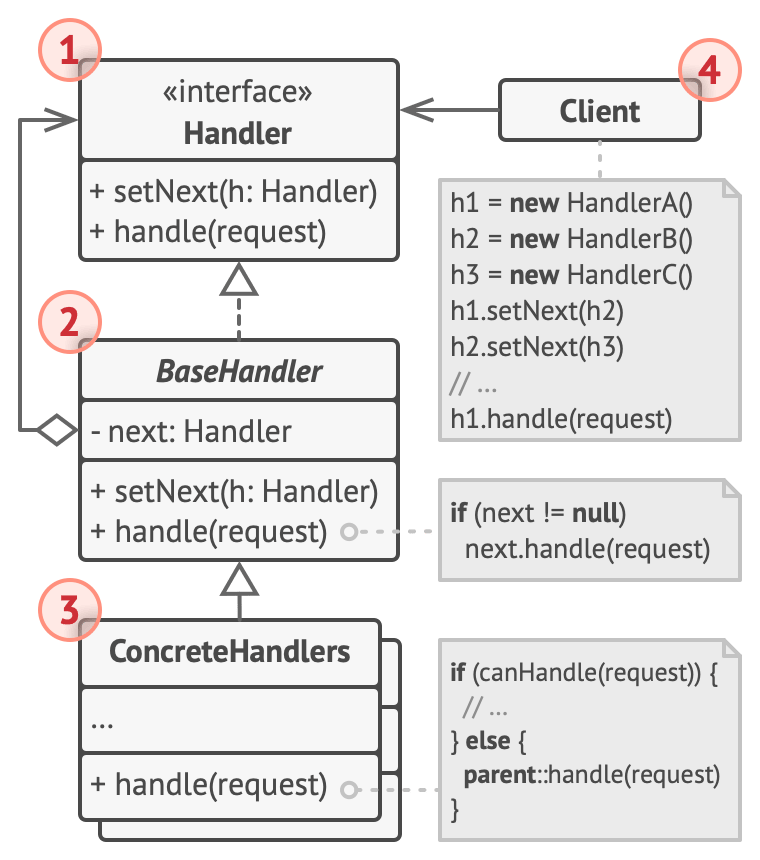

Structure

1. Handler

  • Interface for all concrete handlers.
  • Declares a single method for processing requests.
  • May also have a method for setting the next handler in the chain.

2. BaseHandler

  • (Optional) Contains code common to all handlers.

3. ConcreteHandlers

  • Contain the logic for processing requests.
  • Each handler must decide whether to process the request or pass it on.
  • Usually, handlers are self-contained and immutable.

4. Client

  • Sets up the chain, either once or dynamically.
  • Requests do not have to start at the first handler; they can start at any handler in the chain.
