Command Pattern

References
https://refactoring.guru/design-patterns/command
http://aeternum.egloos.com/v/2948571

Definition

  • Behavioral design pattern
    • A pattern that encapsulates behavior in an object and delegates requests to the encapsulated object.
  • A design pattern that turns a request into a stand-alone object containing all information about the request.
    • This allows you to parameterize methods with different requests, delay or queue request execution, and support undoable operations.

Situation - Building a Text Editor App

  • Suppose you are building a text editor app like Hangul or Word.

Problem

  • How should you build a toolbar with various buttons?

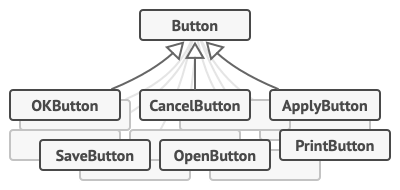

Bad Approach - Creating Subclasses

#### Method - Create a subclass of Button for each button, with the code to execute for that button. #### Problems 1. Many subclasses are created. - If the Button class changes, its subclasses may break. 2. Duplication can occur. - For example, SaveButton, SaveMenuItem, and SaveShortcut all perform the same save operation but are implemented as different classes.

Solution - Layering, Delegating

Cause of the Problem

  • This happens because the roles of the GUI and business logic are not separated. Applying SRP (Single Responsibility Principle) solves this, usually by layering.

Method

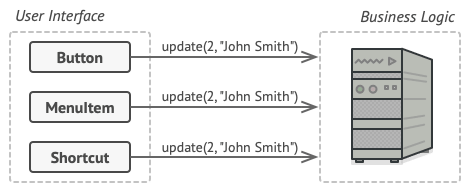

Layering

- The GUI renders images, receives input, sends requests with parameters to the business logic, and displays the result. - The business logic performs the requested operation.

Command Pattern

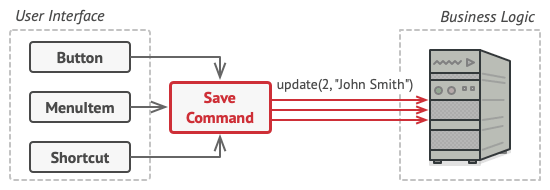

  • The Command Pattern goes further by preventing the GUI from calling business logic directly.
Implementation Steps
  1. Extract detailed requests into separate command classes, each with a method to trigger the request (usually with no parameters).
    • The details of the request (which object, which method, which arguments) are encapsulated in the command object.
    • Command objects act as a link between various GUI and business logic objects.
    • The GUI only needs to call the execute method of the appropriate command, without knowing about the business logic object.
  1. Implement all commands with the same interface.
    • Benefits:
      1. The GUI does not depend on specific commands.
      2. The GUI’s behavior can be changed at runtime.
      3. Commands can be stored in containers.
Question - What about parameters?
  • Command methods do not take parameters, but business logic often needs them. How is this handled?
  • Parameters are considered part of the detailed request. You implement a command class for each combination of business logic and parameters.

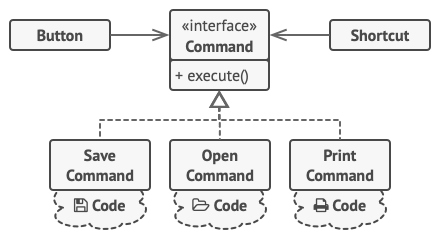

  • Thus, the command pattern structure in this example is as follows:
  1. No need to create many subclasses. The Button class only needs a reference to a command object.
  2. All buttons for the save operation can use the same save command without duplication.

Additional benefits:

  1. Since Command and business logic are composed, you can add logging or delay operations.
  2. Requests are turned into command objects, making it easy to undo or redo operations.

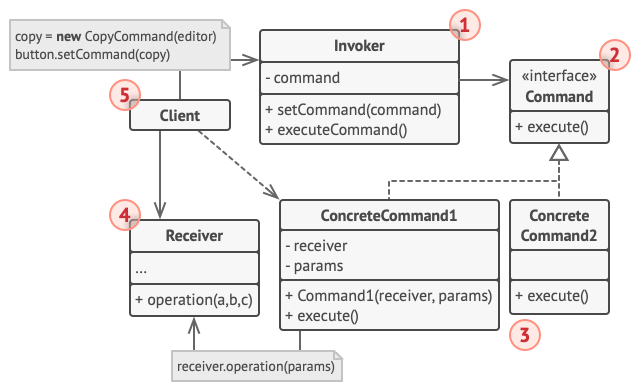

Structure

1. Invoker (or Sender)

  • Responsible for initiating requests (triggering).
  • Must have a reference to a command object.
  • Sends requests to the command, not directly to the receiver.
  • Does not create command objects; the client does.

2. Command (interface)

  • Declares a single method.

3. Concrete Commands

  • Implement various requests.
  • Instead of performing the request directly, they delegate to the business logic (receiver).

4. Receiver

  • The part that actually performs the request (contains the business logic).

5. Client

  • Creates and sets up command objects.
  • The client must provide all parameters needed to create the receiver instance in the command constructor.

Code Example

1. Command

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

public abstract class Command {
    public Editor editor;
    private String backup;

    Command(Editor editor) {
        this.editor = editor;
    }

    void backup() {
        backup = editor.textField.getText();
    }

    public void undo() {
        editor.textField.setText(backup);
    }

    public abstract boolean execute();
}

2. Copy Command

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12

public class CopyCommand extends Command {

    public CopyCommand(Editor editor) {
        super(editor);
    }

    @Override
    public boolean execute() {
        editor.clipboard = editor.textField.getSelectedText();
        return false;
    }
}

3. Paste Command

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15

public class PasteCommand extends Command {

    public PasteCommand(Editor editor) {
        super(editor);
    }

    @Override
    public boolean execute() {
        if (editor.clipboard == null || editor.clipboard.isEmpty()) return false;

        backup();
        editor.textField.insert(editor.clipboard, editor.textField.getCaretPosition());
        return true;
    }
}

4. Cut Command

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

public class CutCommand extends Command {

    public CutCommand(Editor editor) {
        super(editor);
    }

    @Override
    public boolean execute() {
        if (editor.textField.getSelectedText().isEmpty()) return false;

        backup();
        String source = editor.textField.getText();
        editor.clipboard = editor.textField.getSelectedText();
        editor.textField.setText(cutString(source));
        return true;
    }

    private String cutString(String source) {
        String start = source.substring(0, editor.textField.getSelectionStart());
        String end = source.substring(editor.textField.getSelectionEnd());
        return start + end;
    }
}

5. Command History

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13

public class CommandHistory {
    private Stack<Command> history = new Stack<>();

    public void push(Command c) {
        history.push(c);
    }

    public Command pop() {
        return history.pop();
    }

    public boolean isEmpty() { return history.isEmpty(); }
}

6. Editor

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49

public class Editor {
    public JTextArea textField;
    public String clipboard;
    private CommandHistory history = new CommandHistory();

    public void init() {
        JFrame frame = new JFrame("Text editor (type & use buttons, Luke!)");
        JPanel content = new JPanel();
        frame.setContentPane(content);
        frame.setDefaultCloseOperation(WindowConstants.EXIT_ON_CLOSE);
        content.setLayout(new BoxLayout(content, BoxLayout.Y_AXIS));
        textField = new JTextArea();
        textField.setLineWrap(true);
        content.add(textField);
        JPanel buttons = new JPanel(new FlowLayout(FlowLayout.CENTER));
        JButton ctrlC = new JButton("Ctrl+C");
        JButton ctrlX = new JButton("Ctrl+X");
        JButton ctrlV = new JButton("Ctrl+V");
        JButton ctrlZ = new JButton("Ctrl+Z");
        Editor editor = this;
        ctrlC.addActionListener(new ActionListener() {
            @Override
            public void actionPerformed(ActionEvent e) {
                executeCommand(new CopyCommand(editor));
            }
        });
        ctrlX.addActionListener(new ActionListener() {
            @Override
            public void actionPerformed(ActionEvent e) {
                executeCommand(new CutCommand(editor));
            }
        });
        ctrlV.addActionListener(new ActionListener() {
            @Override
            public void actionPerformed(ActionEvent e) {
                executeCommand(new PasteCommand(editor));
            }
        });
        ctrlZ.addActionListener(new ActionListener() {
            @Override
            public void actionPerformed(ActionEvent e) {
                undo();
            }
        });
        buttons.add(ctrlC);
        // ... (rest omitted for brevity)
    }
    // ... (rest omitted for brevity)
}
