Iterator Pattern

Reference
https://refactoring.guru/design-patterns/iterator

Definition

  • Behavioral design pattern
    • A pattern that encapsulates the behavior of an object and delegates requests to the object.
  • A design pattern that allows you to traverse elements of a collection without knowing its underlying structure.

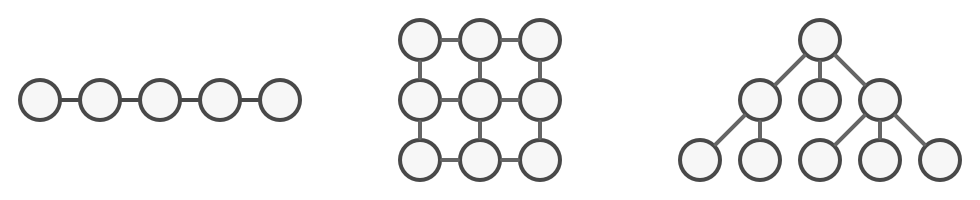

Situation - Traversing Various Types of Collections

- You need to traverse various types of collections.

Bad Approach - Implementing Traversal Algorithms in the Collection

Problems

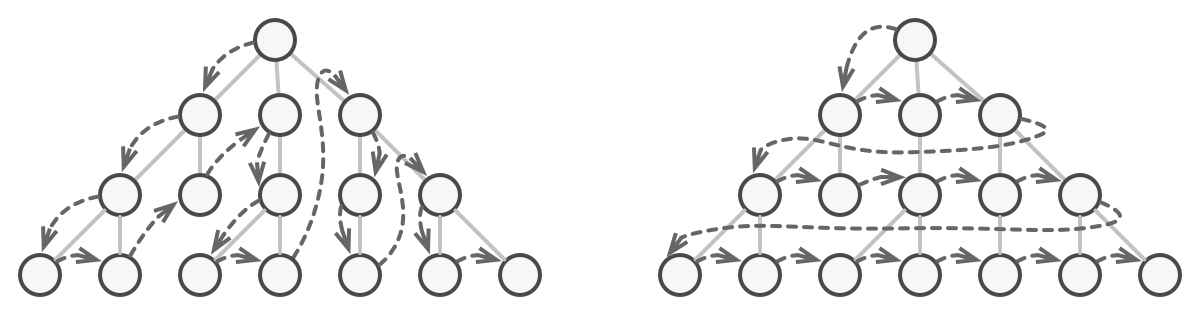

  1. If the data structure is complex, traversal can be difficult and there can be many types.
    • For example, in a tree, you can traverse using DFS, BFS, or even randomly. If you implement all traversal algorithms in the collection, it becomes messy. The main function of a collection is efficient storage, after all.
  2. The client code becomes dependent on specific collections.
    • Even though the client doesn’t care how the data is stored, it ends up depending on the collection because each collection provides different ways to access its elements.

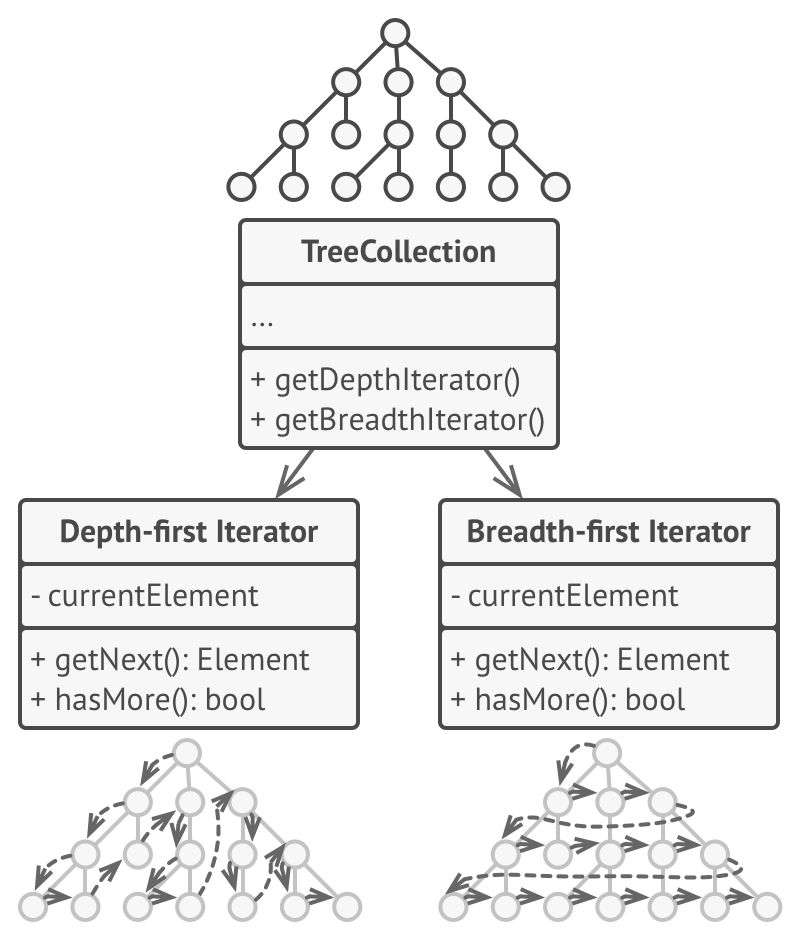

Solution - Separate the Traversal Algorithm!

  • The core of the iterator pattern is to separate the traversal algorithm from the collection into an object called an iterator.

Implementation and Benefits

  1. Separate the traversal part into a class called iterator.
    • You can encapsulate the details of traversal (e.g., current position, how many elements are left).
    • The responsibility for traversal is given to the iterator.
  2. Implement main methods to fetch elements.
    • This allows you to traverse all elements.
  3. Ensure all iterators implement the same interface.
    • This allows client code to use collections and traversal algorithms interchangeably.

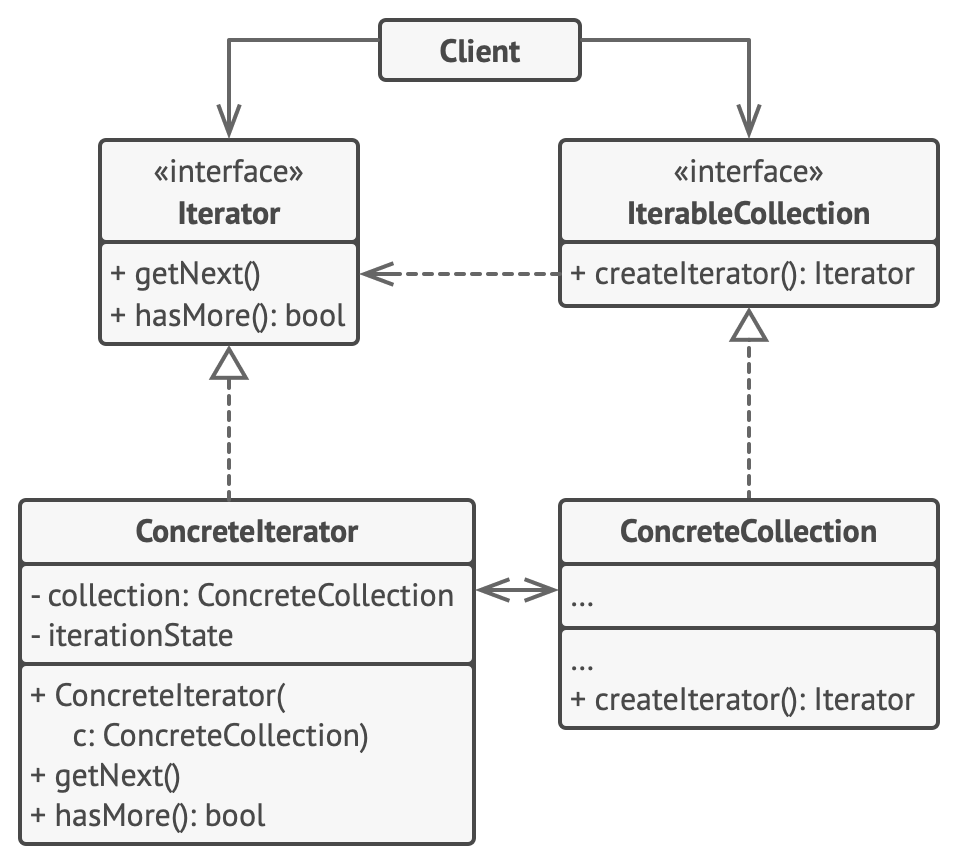

Structure

1. Iterator

  • Implements the algorithm needed to traverse a collection.
    1. Fetch the next element
    2. Get the current position
    3. Restart the iteration, etc.

2. Concrete Iterators

  • Implements specific algorithms for traversal.
  • The iterator tracks its own progress, so multiple iterators can traverse the same collection independently.

3. Collection

  • Declares one or more methods to obtain an iterator.

4. ConcreteCollection

  • Returns a new iterator instance each time the client requests one.

5. Client

  • Uses the collection and iterator through their interfaces.
  • The client does not create the iterator; the collection does.
    • In special cases, the client may create its own iterator, e.g., if it wants a custom iterator.

Question

Even though the collection interface claims to be type-agnostic, if the collection is a tree or a list, the traversal may differ, violating LSP (Liskov Substitution Principle).

For example, a tree may return iterators named dfs, bfs, etc., but a list does not have such iterators. Thus, it can be seen as a violation of LSP.

Therefore, instead of grouping all collections together, it may be better to create interfaces for collections where LSP applies, such as grouping trees and lists separately.
