Mediator Pattern

Reference
https://refactoring.guru/design-patterns/mediator

Definition

  • Behavioral design pattern
    • A pattern about how objects communicate within a group.
  • A design pattern that restricts direct communication between objects and forces them to communicate through a mediator object.

Situation - Communication Between Components in a Dialog

  • Imagine a dialog for creating and editing a customer’s profile.
  • This dialog contains various form controls, e.g., text fields, checkboxes, buttons.

Key Point

How should components communicate within a form?

  • Example interactions:
    1. When the [submit button] is pressed, it checks the [text field] for validity.
    2. When the [checkbox] labeled “I have a dog” is checked, a hidden [text field] for the dog’s name appears.

Bad Approach - Direct Communication Between Form Controls

  • For example, if the [checkbox button] directly manipulates the [text field], the [checkbox button] becomes dependent on the [text field].
  • This leads to the following problem:

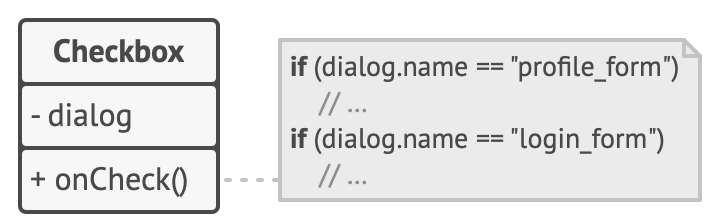

Problem - Not Reusable

  • You may want to reuse the checkbox in another form, but it’s tightly coupled to the dog name text field, making reuse difficult.

Solution - Use a Mediator!

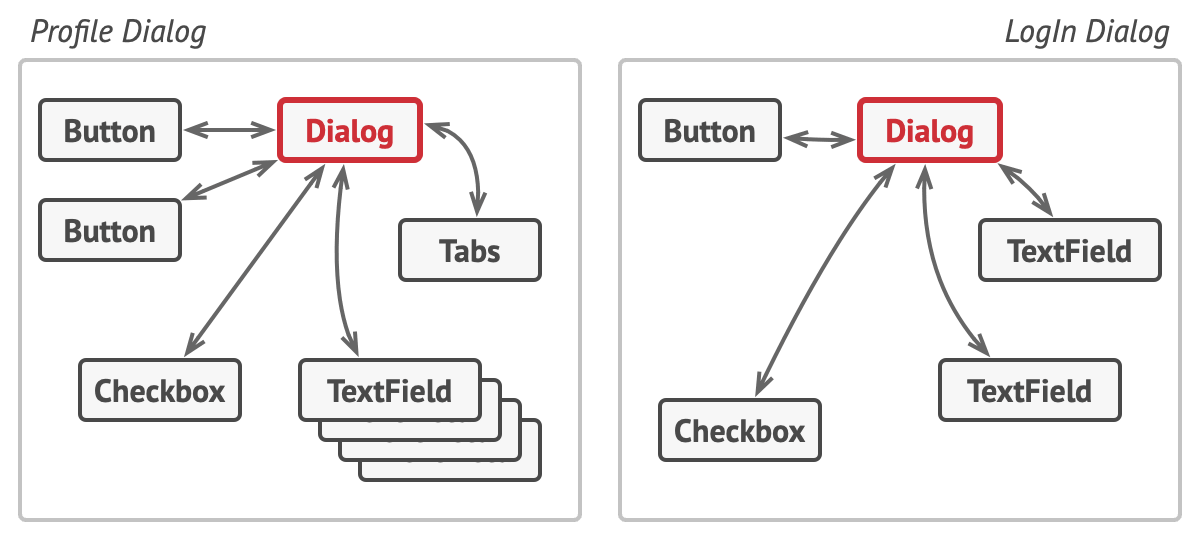

  • To reduce direct communication, introduce a mediator. All communication goes through the mediator. In this example, the dialog that knows all components can act as the mediator.

Component (button, checkbox…)

  • The [checkbox button] notifies the mediator when it is checked (using a notify method).
  • The [text field] is operated by the mediator.

Mediator (dialog)

  • The mediator receives notifications (e.g., the checkbox button was clicked) and, using references to the dialog’s text fields, delegates or performs actions.

Benefits

  1. Objects only need to notify!
    • The checkbox button used to show the text field itself, but now it just notifies the mediator.
  2. Can be used in various dialogs!
    • By declaring an abstract interface for the dialog, it can be used in many contexts.
  3. Can encapsulate relationships!
    • Complex relationships between objects can be hidden via the mediator.

=> Components depend only on the dialog, not on each other, making reuse easier in different contexts.

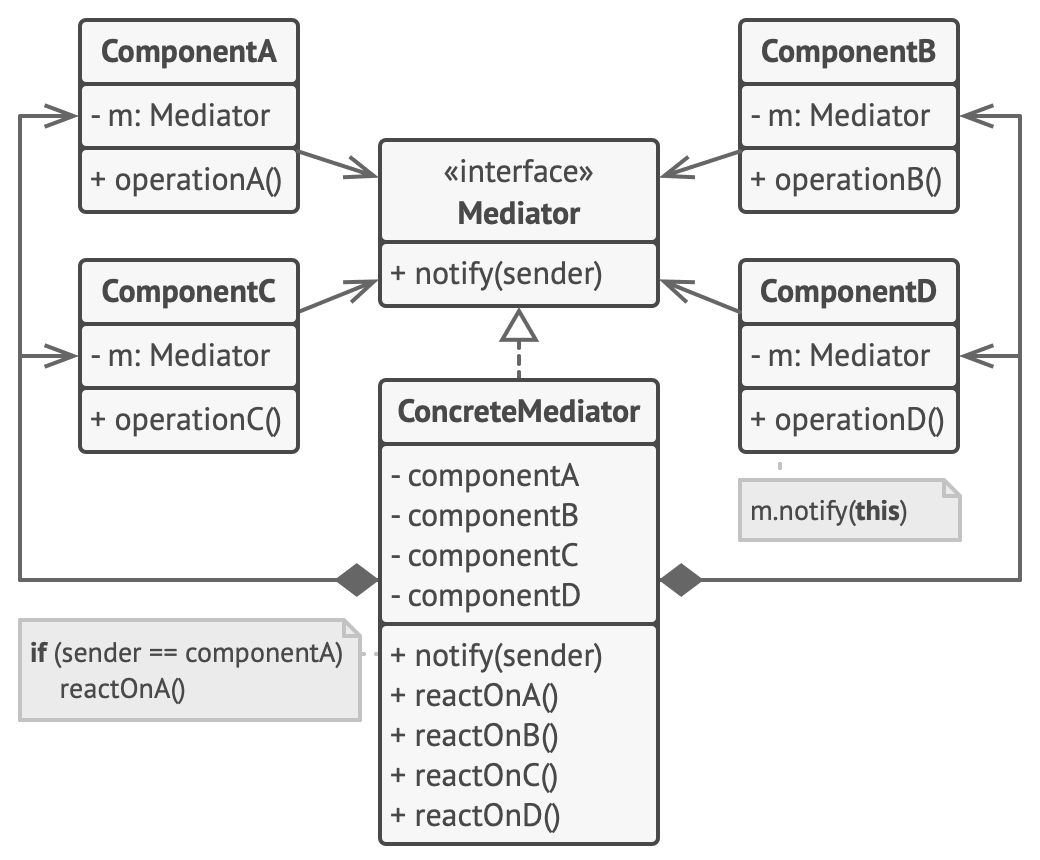

Structure

1. Component

  • Contains its own business logic.
  • Has a mediator interface field to notify the mediator.
    • This allows reuse in various mediators.

2. Mediator

  • Declares methods for communication between components.
    • Usually implemented as a single notification method.
    • Components pass themselves and context arguments to the method (e.g., m.notify(this, "click")).
    • This removes dependencies between sender and receiver components.

3. Concrete Mediator

  • Encapsulates relationships between components.
  • Usually holds references to all components and manages them, sometimes even its own lifecycle.

Key Points

  • Components must not know about each other. When an event occurs, they only notify the mediator.
  • The mediator identifies the sender and determines which component to trigger.
  • From the component’s perspective, the mediator is like a black box: the sender doesn’t know who will receive the request, and the receiver doesn’t know who sent it.
