Strategy Pattern

Reference
https://refactoring.guru/design-patterns/strategy

Intent

Classification

  • Behavioral design pattern
    • A pattern that encapsulates the behavior of an object and delegates requests to the object.

Definition

  • A pattern that defines a family of algorithms, encapsulates each one as a separate class, and makes them interchangeable.

Problem

Situation

  • Let’s think about a navigation app.
  • In the early stages of development, a feature was created to suggest routes with scenic views.
  • Over time, more requirements were added:
    1. Added a feature to provide walking routes…
    2. Added a feature to provide routes using public transportation…
    3. Even added a feature to provide routes passing through specific cities.

Problem

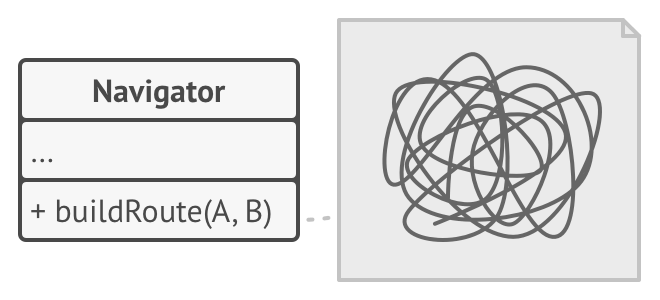

  • The logic for providing routes was written in the main class, so every time a new feature was added, the code in the main class doubled in length.
  • Also, because the logic was not separated, bugs occurred whenever the algorithms were modified or improved.
  • How can we create a better structure?

Solution

Key Point

  • Separate each algorithm into its own class and use an interface to utilize the algorithms.

Method

Terminology

  • The Navigator is called the context, and the algorithms for selecting a specific route are called strategies.

The reason it’s called context is to emphasize the meaning of the context in which the strategy is used.

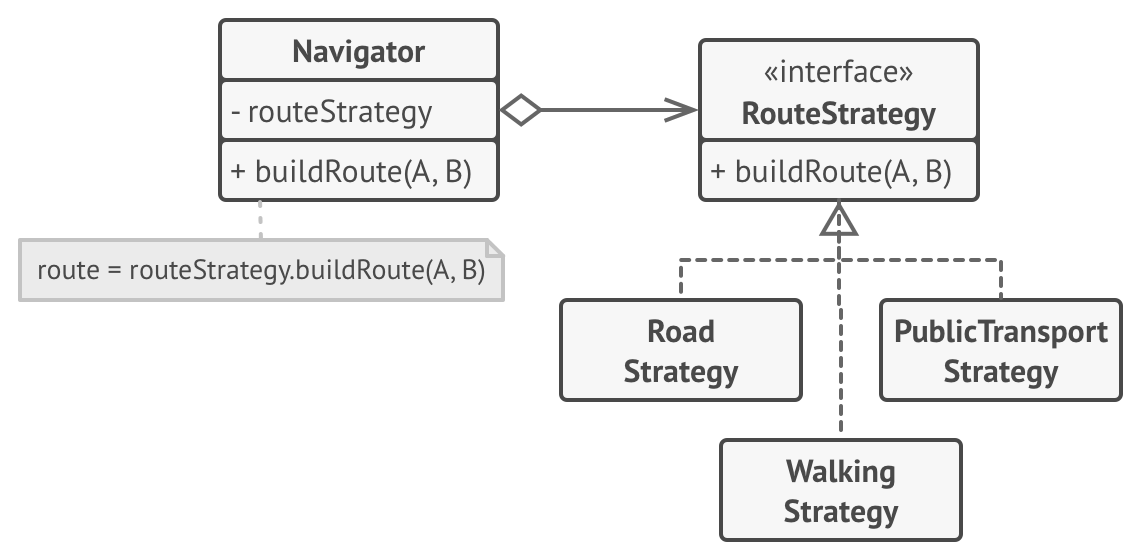

1. Navigator (context)

  • Create a class called Navigator and specify a field that can reference strategies.
  • The Navigator delegates the route-finding logic to the strategy.
  • This strategy is declared as an interface type, so it is not dependent on a specific route-finding algorithm.

2. RouteStrategy

  • Declare the methods needed for the route-finding algorithms.

3. Concrete Strategy (e.g., road, walking, publicTransport…)

  • Every time a new algorithm is added, create a concrete strategy that implements RouteStrategy.

  • The algorithm is executed here.

  • By doing this, the main class does not need to become messy, and the route-finding algorithms can be separated.

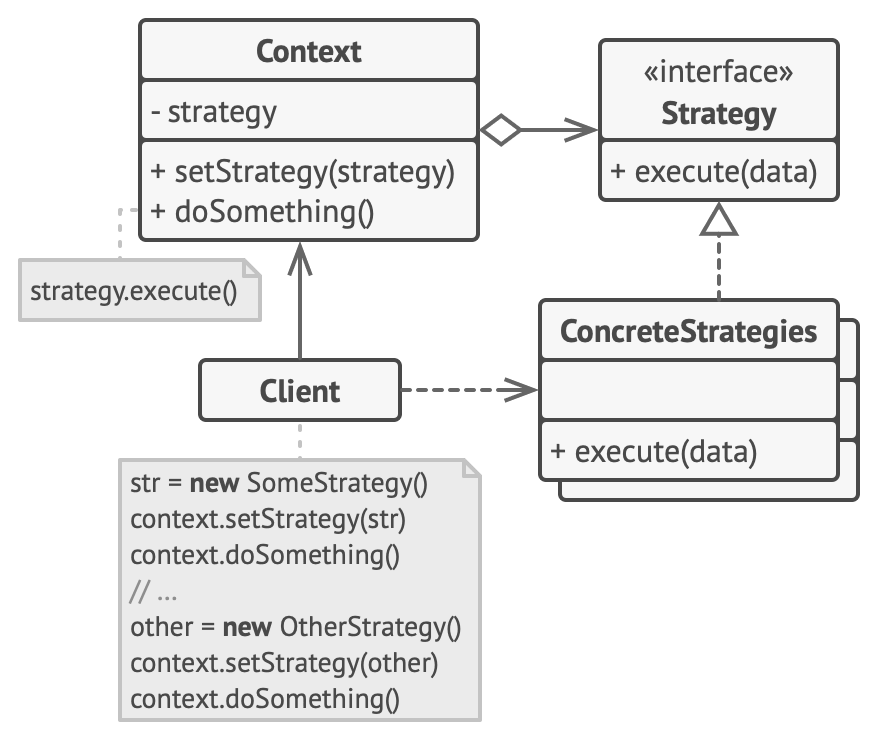

Structure

1. Context

  • Communicates with one of the concrete strategies through a reference declared as the strategy interface.
  • Exposes a setter method so the client can change the current strategy object.

2. Strategy

  • The common interface for all concrete strategies.
  • Defines the method that the context will use to execute the strategy.

3. ConcreteStrategies

  • Implements the algorithms that the context will use.

4. Client

  • Creates a specific strategy object and passes it to the context. In other words, the context is not responsible for creating or changing the strategy.
  • The client can also change the current strategy object of the context at runtime.
