Intent

Category

  • behavioral design pattern
    • A behavioral class pattern that uses inheritance to distribute behavior among classes.

Definition

  • A pattern where the skeleton of an algorithm is defined in a superclass, and subclasses override specific methods without changing the algorithm’s structure.

Problem

Situation

  • Imagine a data mining app.
  • This app analyzes corporate documents.
  • Users provide data.
  • The app parses the data in a unified format, analyzes it, and extracts meaningful information.

Problem

Adding Support for More Input Types

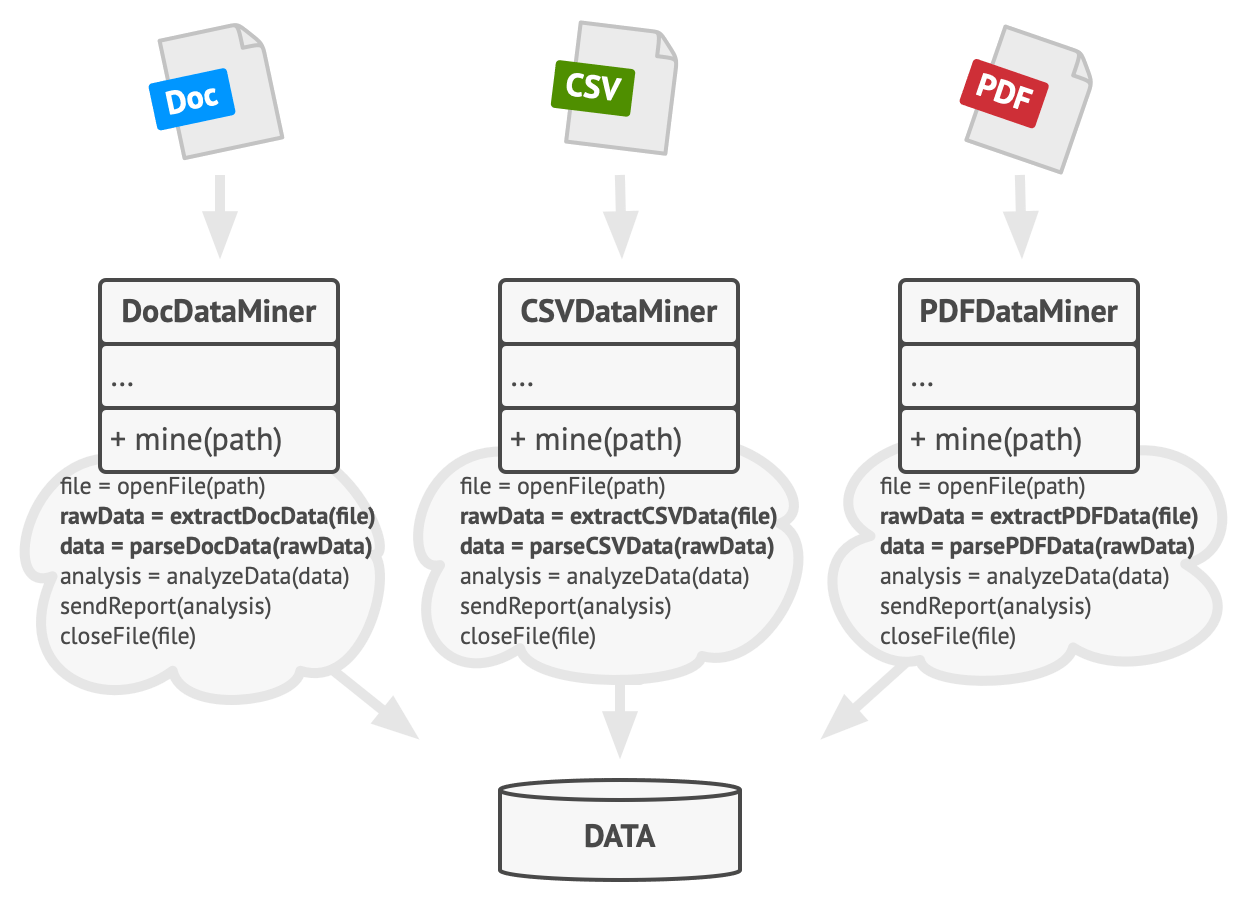

  • Initially, only Doc files were supported for data mining, but over time, csv and pdf files were also supported.

Problem Recognition

  1. The three classes have similar code.
    • They all follow the same procedure: read file -> extract data -> parse data -> analyze data -> report results -> close file.
    • The doc, csv, and pdf classes have duplicated code.
      ex:) openFile, analyzeData, sendReport, closeFile
  2. There is a lot of branching logic.
    • The client code calls each class’s methods with branching logic.

How can we avoid duplication in classes with the same structure?

Solution

Core Idea

  • Handle common logic in the superclass!
  • Handle differing logic in subclasses!
  • Group the sequence of steps together!

Method

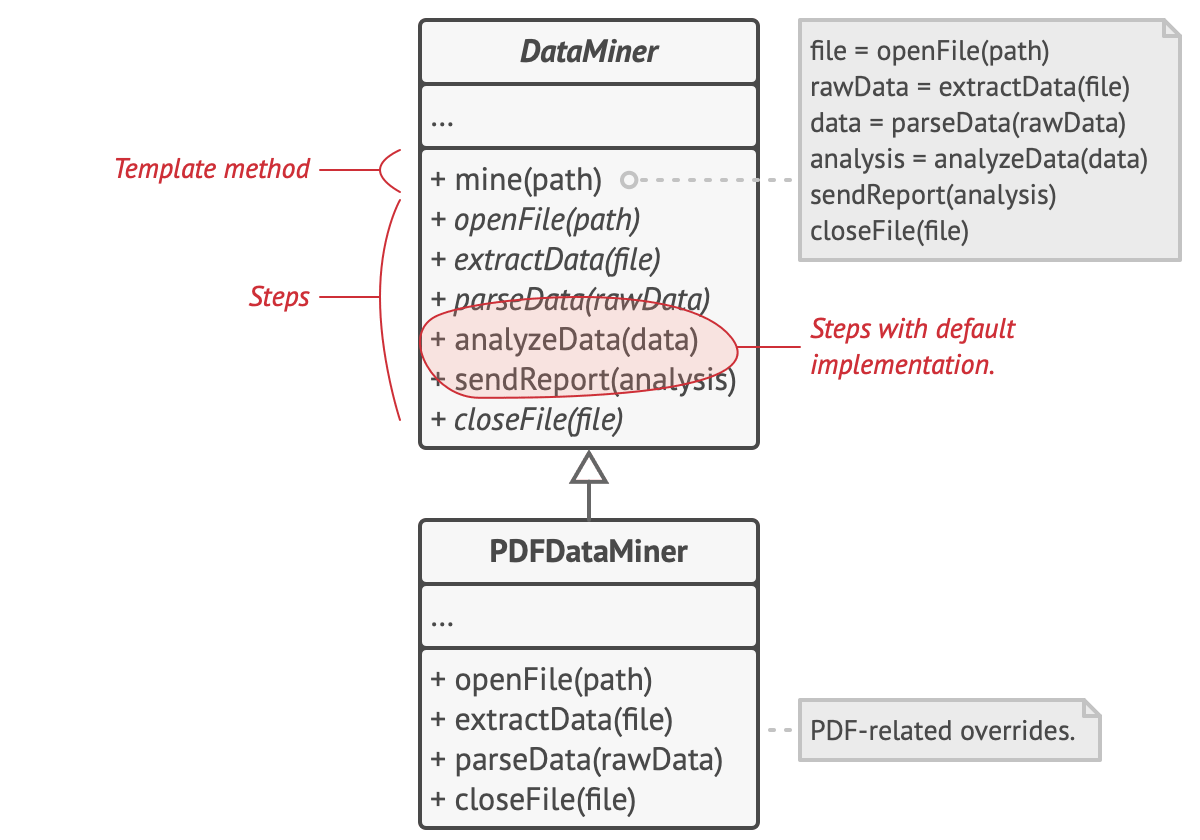

  1. Create a superclass called DataMiner.
    • Implement the common steps in this class.
    • Leave the steps that differ for each document type as abstract methods.
    • Provide a template method called mine to execute the sequence of steps.
  2. Each document format class inherits from DataMiner.
    • Each document format class overrides and implements its own methods.
      ex:) For PDF files, the abstract parseData method is implemented with PDF parsing logic.

With this approach, common logic is placed in DataMiner, and document-specific logic is implemented via overriding. The sequence of execution is simplified through the template method.

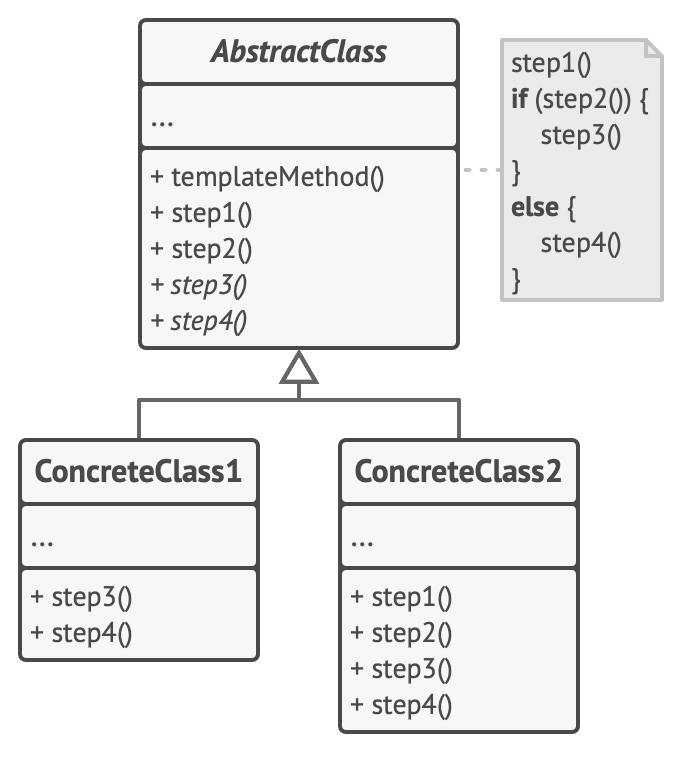

Structure

1. Abstract Class

  • Declares each step of the algorithm as methods.
  • Declares a template method that executes these methods in a specific order.
  • Optionally, declares hook methods.
    • Hook methods have empty bodies.
    • If additional logic is needed, subclasses can implement these hook methods.
    • They are usually placed between important steps.

2. Concrete Class

  • Overrides the steps that need to be implemented with its own logic.
